£ 49,00 incl. vat
The GroundPlug Twister M16/1000mm Screw Pile foundation is part of the GroundPlug M16 series. We recommend this series for projects on flat or slightly sloped terrain and all standard soils.

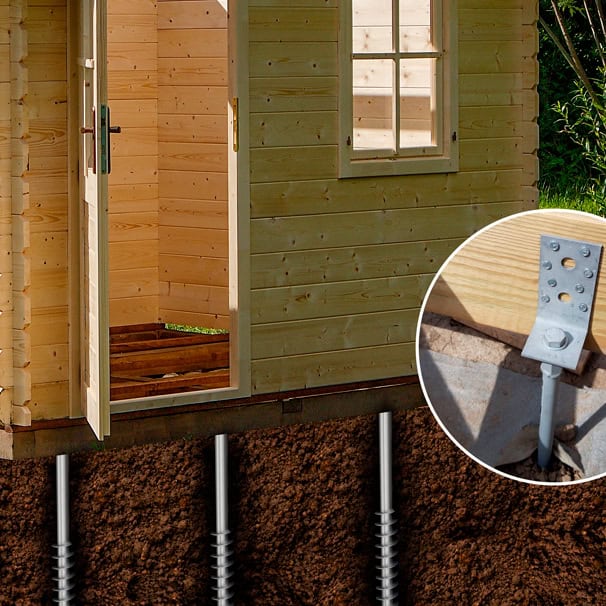

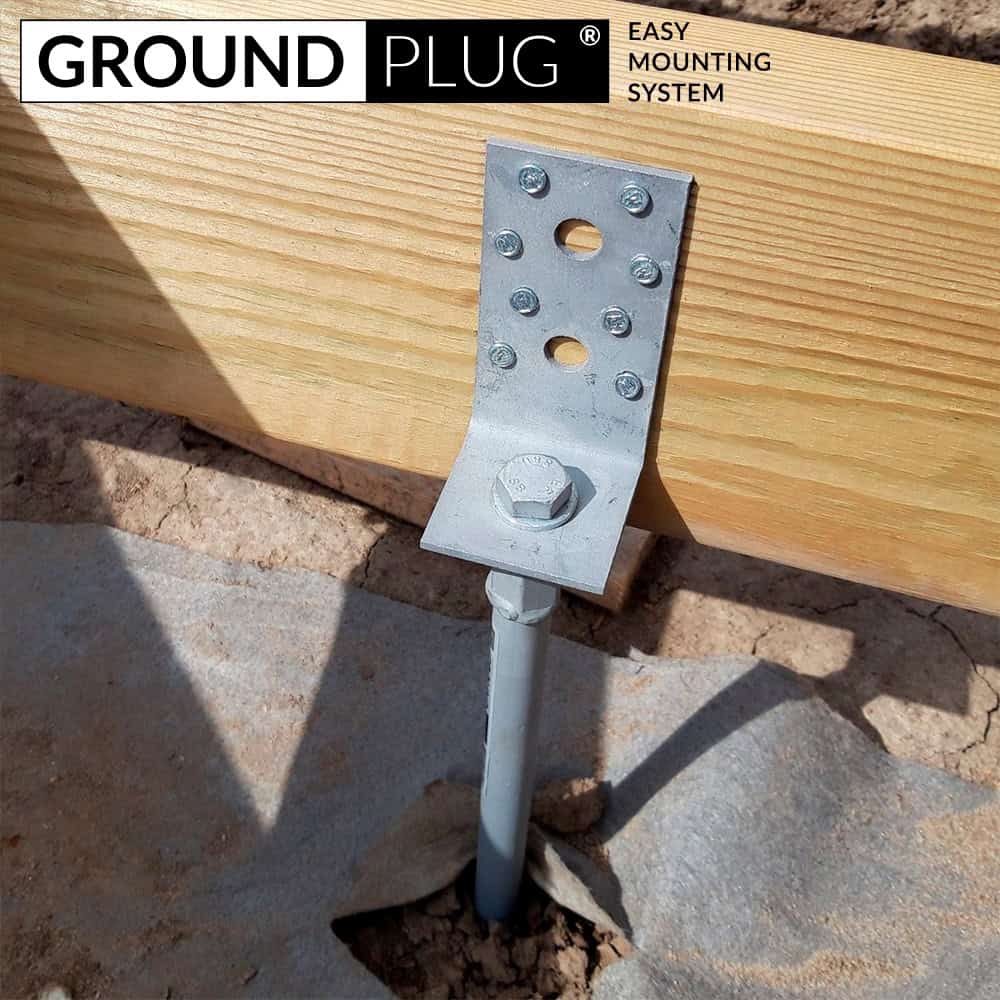

The GroundPlug Twister M16/1000mm Screw Pile foundation is mostly used for wooden outbuildings on flat or slightly sloped terrain. Choose this foundation for projects such as sheds, post constructions, small guesthouses and other similar uninsulated outbuildings. GroundPlug Twister M16/1000mm can also be used for decks on more sloping terrain.

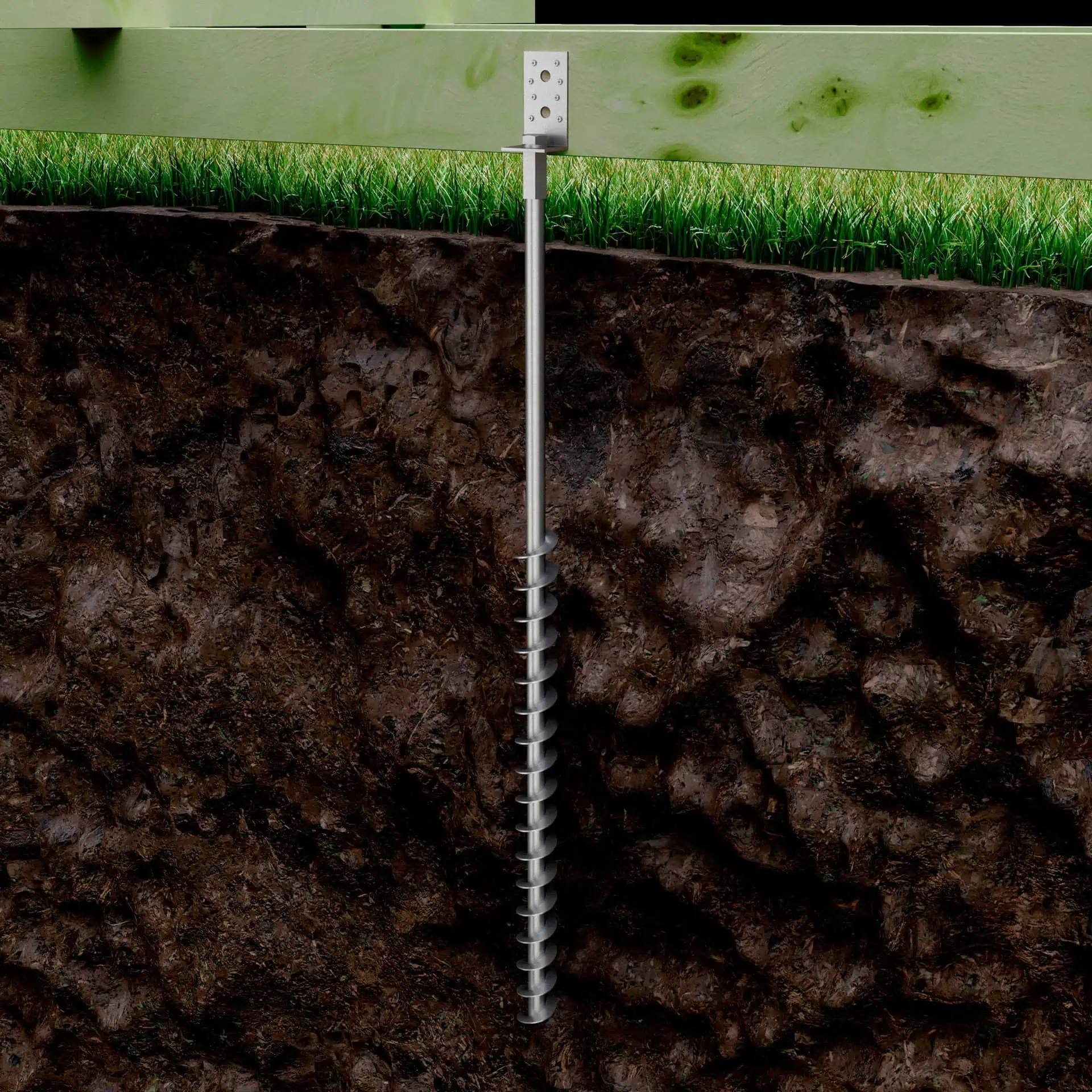

The distance between terrain and mounting point should be a maximum of 15cm for outbuildings, and a maximum of 35cm for flat constructions such as decks.
£ 49,00 incl. vat
| Weight: | 2.45 kg | |
|---|---|---|
| Dimensions: | 100 cm X 4.93 cm X 4.93 cm | |
| Materials: | Galvanized steel | |
| Vertical Load Capacities at max terrain distance: | ||
| – Soft Clay/Loose sand: | Compression: 3.52 kN | Tension: 2.12 kN |
| – Medium clay/Medium sand: | Compression: 5.18 kN | Tension: 3.06 kN |
| – Stiff clay/Dense sand: | Compression: 8.65 kN | Tension: 5.07 kN |
| Vertical Load capacities when fully installed in ground: | ||
| – Soft clay/Loose sand: | Compression: 6,77 kN | Tension: 2,54 kN |
| – Medium clay/Medium sand: | Compression: 9,94 kN | Tension: 3,06 kN |
| – Stiff clay/Dense sand: | Compression: 16,62 kN | Tension: 6,07 kN |
| Top for impact wrench: | 24 mm | |
| Minimum torque: | 1300 Nm | |
| Max terrain distance: | ||
| – Decks: | Maks. 35 cm | |
| – Buildings: | Maks. 15 cm | |
| Max terrain distance when applying post bracket or stabiliser: | ||
| – Decks: | Maks. 15 cm | |
| – Buildings: | Maks. 15 cm | |
| Technical drawing: | ||
| Weight: | 2.45 kg |
|---|---|
| Dimensions: | 100 cm X 4.93 cm X 4.93 cm |
| Materials: | Galvanized steel |
| Vertical Load Capacities at max terrain distance: | |
| – Soft Clay/Loose sand: | |
| Compression: 3.52 kN | Tension: 2.12 |
| – Medium clay/Medium sand: | |
| Compression: 5.18 kN | Tension: 3.06 kN |
| – Stiff clay/Dense sand: | |
| Compression: 8.65 kN | Tension: 5.07 kN |
| Vertical Load capacities when fully installed in ground: | |
| – Soft Clay/Loose sand: | |
| Compression: 6,77 kN | Tension: 2,54 |
| – Medium clay/Medium sand: | |
| Compression: 9,94 kN | Tension: 3,06 kN |
| – Stiff clay/Dense sand: | |
| Compression: 16,62 kN | Tension: 6,07 kN |
| Top for impact wrench: | 24 mm |
| Minimum Torque | 1300 Nm |
| Max terrain distance: | |
| – Decks: | Maks. 35 cm |
| – Building: | Maks. 15 cm |
| Techincal Drawing: | |
To find out, how many and which type of GroundPlug® Screw Pile, you need for your project, you have 3 options:
Use our free engineering service by filling out our project form.
Calculate you own project by using our capacity tables
Please note that the tables can only be applied to smaller simpler projects such as decks, sheds and outbuildings with standard shapes. If you are building a larger or more complex project, with a more complex shape or on sloping terrain we encourage you to take advantage of our free engineering service.
You can also design and calculate your own deck project using our super cool 3D Deck Designer.

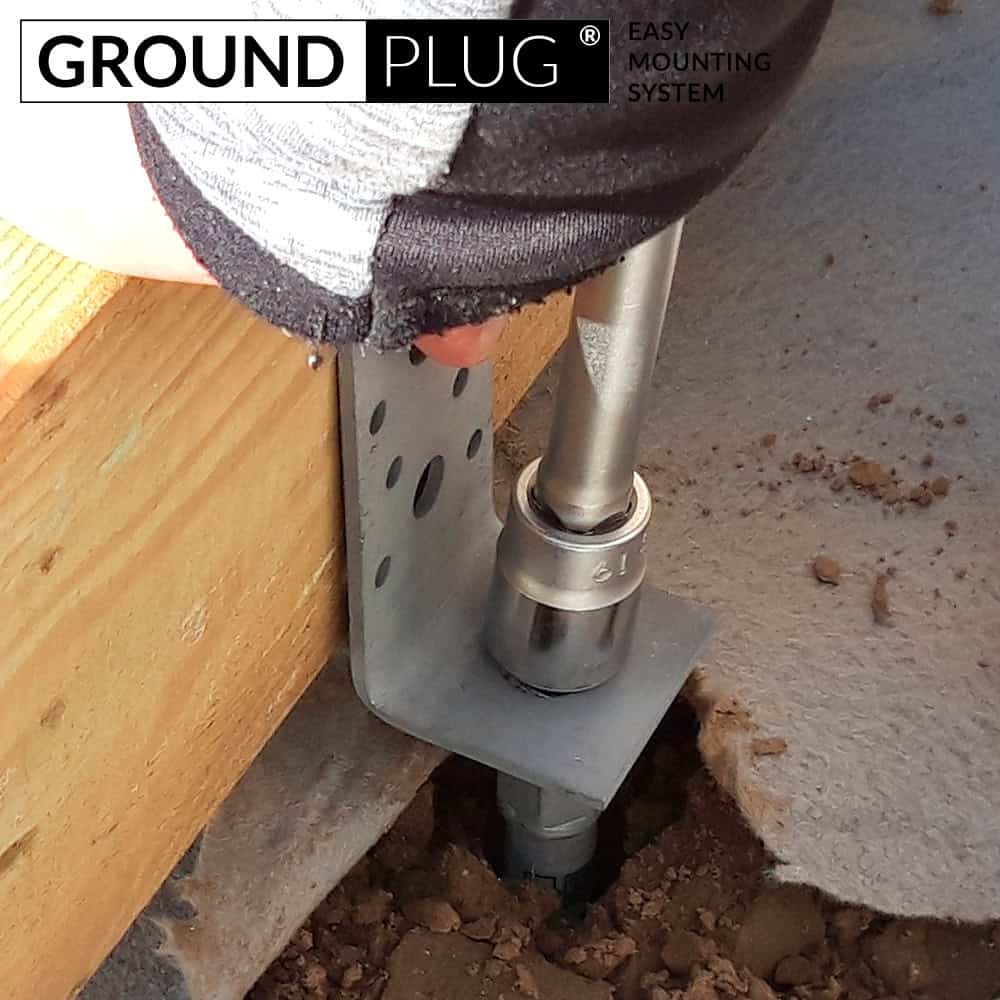

GroundPlug® Twister™ Screw piles are designed for quick and easy installation , regardless of what size you are installing. On our installation page you will find step-by-step installation manuals, incl. a list af the tools you will need to install the GroundPlug® Twister™ Screw Piles. It doesn’t get much simpler than that.
Installation manual:
