£ 37,00 incl. vat

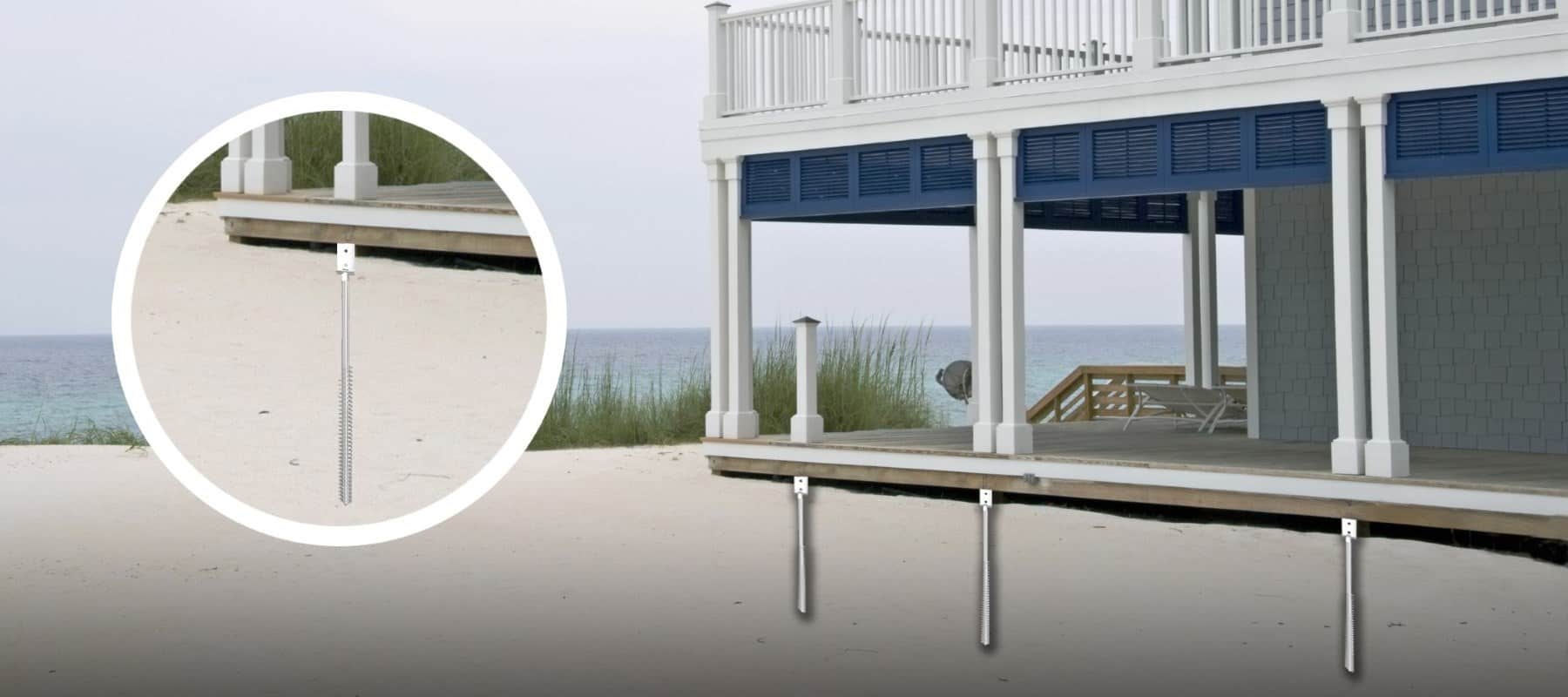

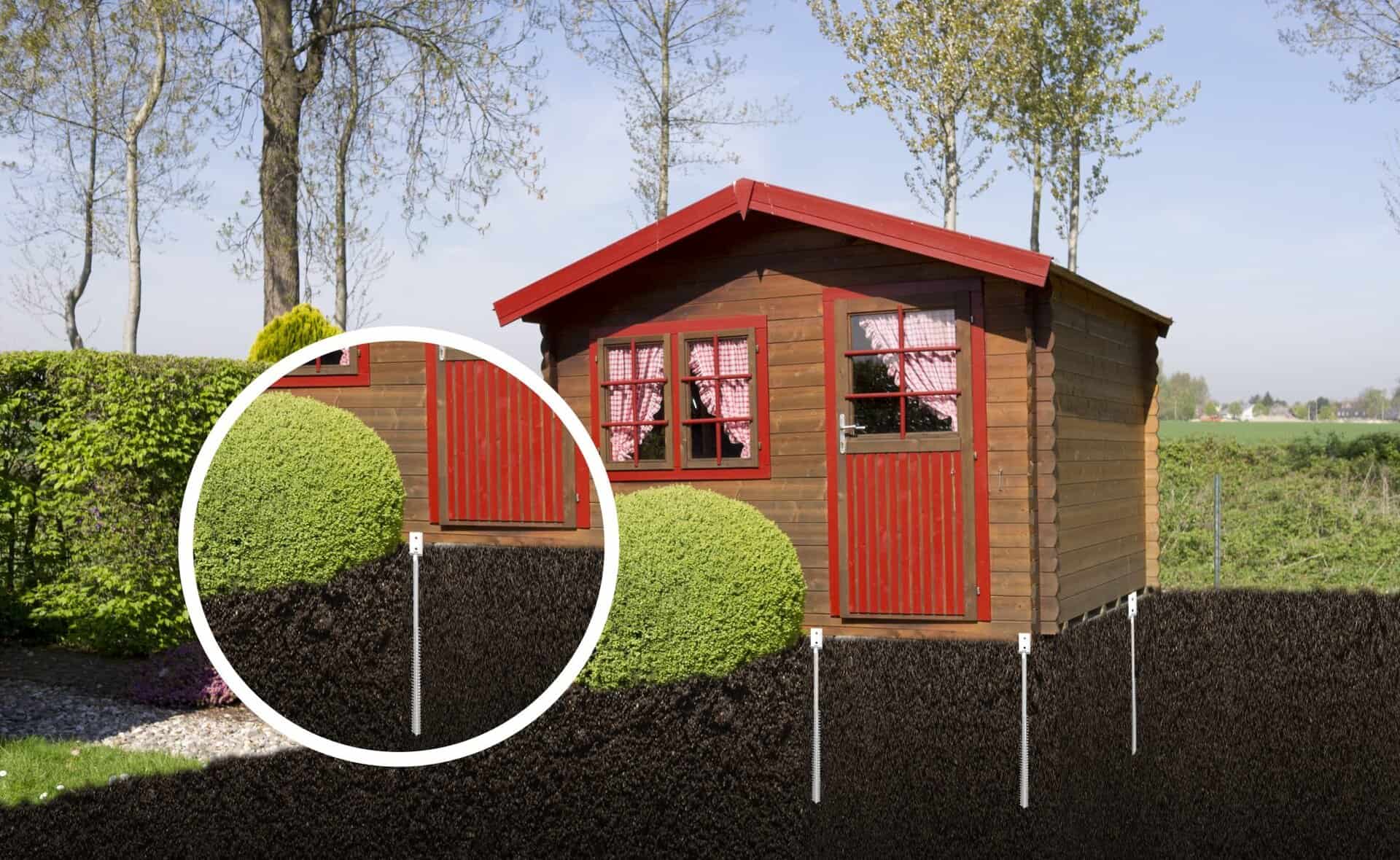

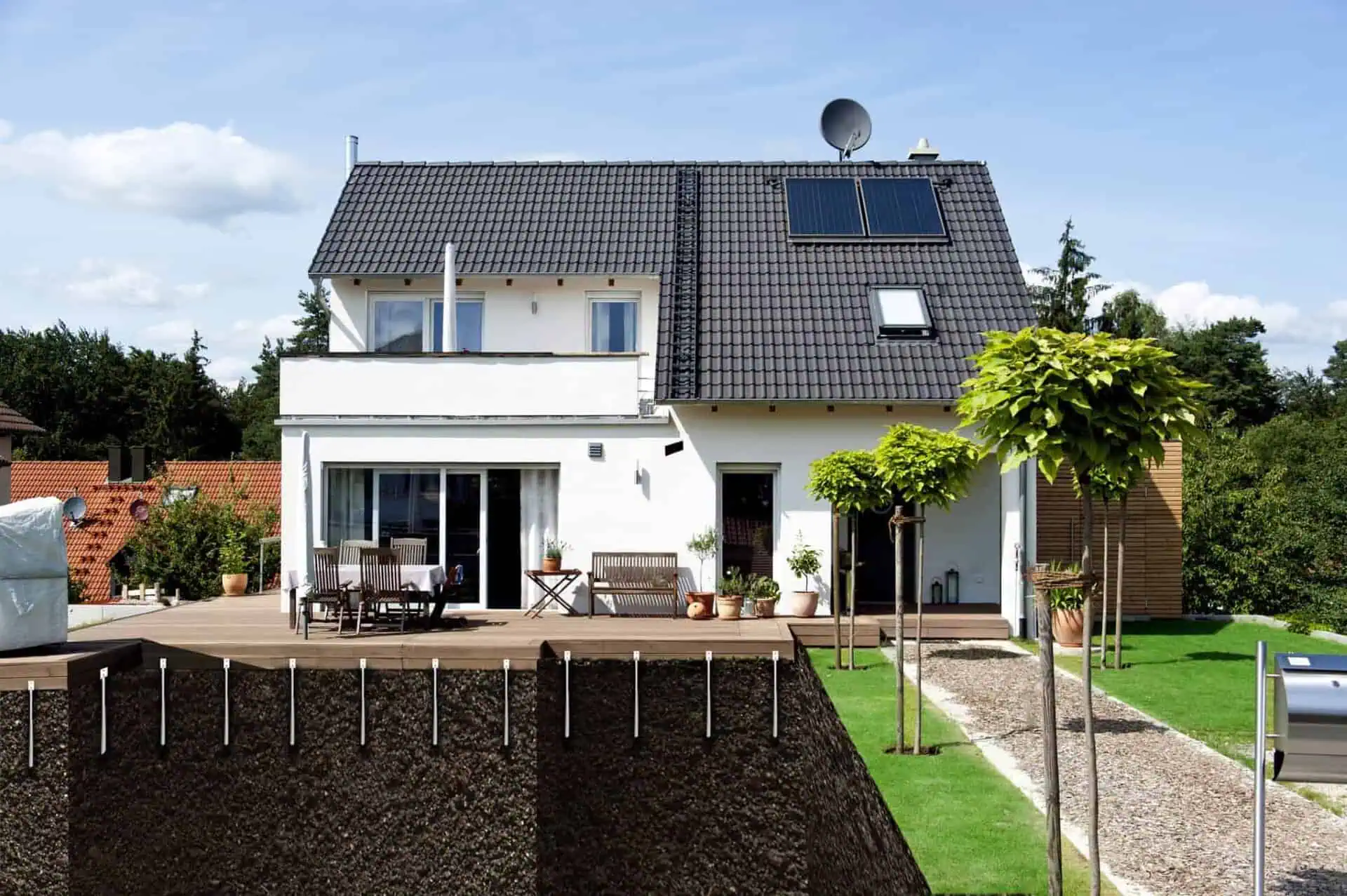

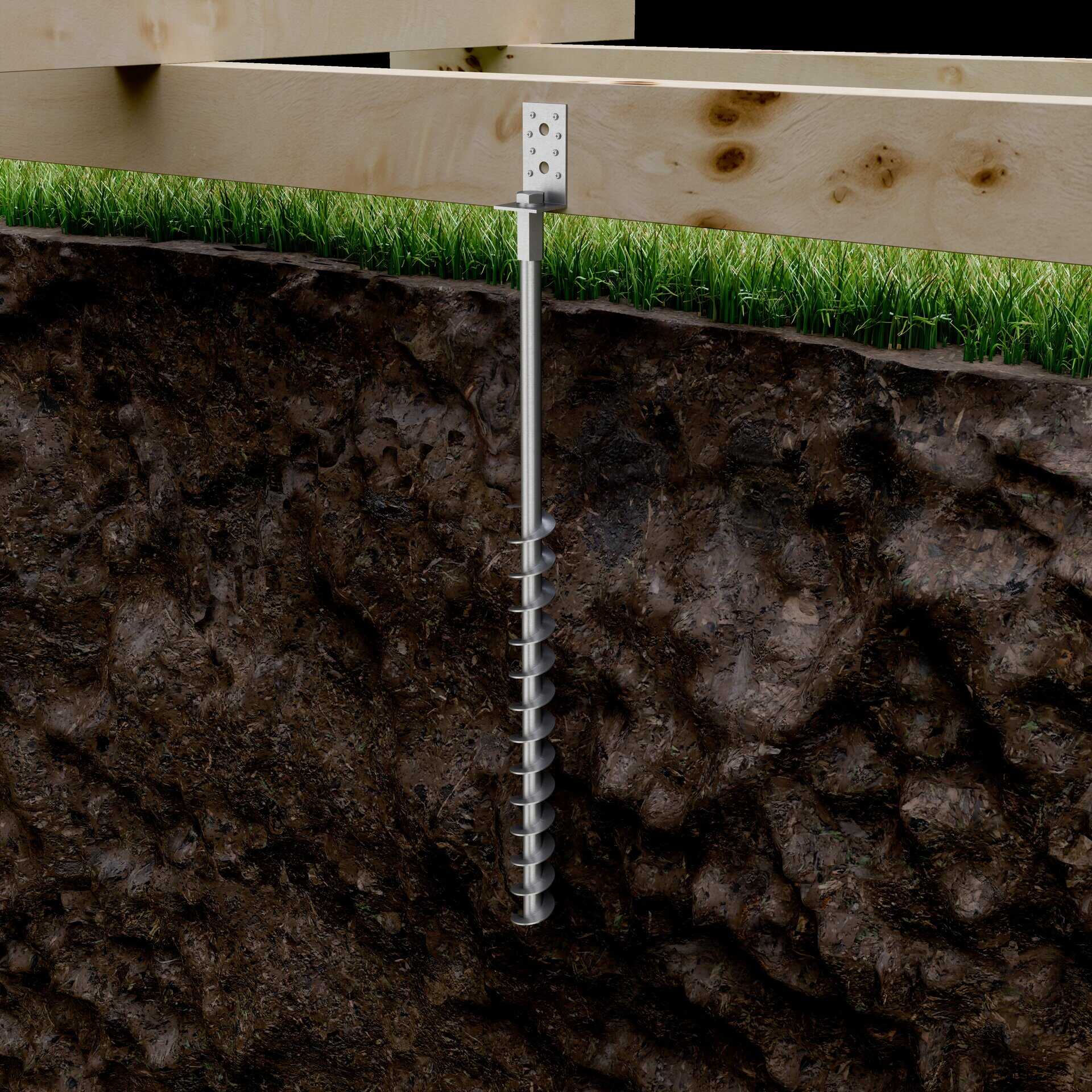

GroundPlug® TwisterTM M16 is our second largest TwisterTM screw pile series (for the private market). We recommend this series for all soil types and sloped terrain. The GroundPlug® TwisterTM M16/750mm is our most used series for wooden small buildings with vertical wind load like sheds, annexes and similar. Distance from terrain level to mounting point up to 10 inches for flat constructions like decks and walkways and 4 inches for upright construction such as shed, annexes etc.
Choose this screw pile footing for projects like sheds, light annexes, post constructions, decks or walkways with more than 20cm terrain distance, or for sloped terrain in general.
£ 37,00 incl. vat
| Weight: | 1.98 kg | |
|---|---|---|
| Dimensions: | 75 cm X 4.93 cm X 4.93 cm | |
| Materials: | Galvanized steel | |
| Vertical Load Capacities at max terrain distance: | ||
| – Soft Clay/Loose sand: | Compression: 3.35 kN | Tension: 1.26 kN |
| – Medium clay/Medium sand: | Compression: 4.92 kN | Tension: 1.81 kN |
| – Stiff clay/Dense sand: | Compression: 8.23 kN | Tension: 3.01 kN |
| Vertical Load capacities when fully installed in ground: | ||
| – Soft clay/Loose sand: | Compression: 6,77 kN | Tension: 2,54 kN |
| – Medium clay/Medium sand: | Compression: 9,94 kN | Tension: 3,66 kN |
| – Stiff clay/Dense sand: | Compression: 16,62 kN | Tension: 6,07 kN |
| Top for impact wrench: | 24 mm | |
| Minimum torque: | 1300 Nm | |
| Max terrain distance: | ||
| – Decks: | Maks. 25 cm | |
| – Buildings: | Maks. 7 cm | |
| Max terrain distance when applying post bracket or stabiliser: | ||
| – Decks: | Maks. 7 cm | |
| – Buildings: | Maks. 7 cm | |
| Technical drawing: | ||
| Weight: | 1.98 kg |
|---|---|
| Dimensions: | 75 cm X 4.93 cm X 4.93 cm |
| Materials: | Galvanized steel |
| Vertical Load Capacities at max terrain distance: | |
| – Soft Clay/Loose sand: | |
| Compression: 3.35 kN | Tension: 1.26 |
| – Medium clay/Medium sand: | |
| Compression: 4.92 kN | Tension: 1.81 kN |
| – Stiff clay/Dense sand: | |
| Compression: 8.23 kN | Tension: 3.01 kN |
| Vertical Load capacities when fully installed in ground: | |
| – Soft Clay/Loose sand: | |
| Compression: 6,77 kN | Tension: 2,54 |
| – Medium clay/Medium sand: | |
| Compression: 9,94 kN | Tension: 3,66 kN |
| – Stiff clay/Dense sand: | |
| Compression: 16,62 kN | Tension: 6,07 kN |
| Top for impact wrench: | 24 mm |
| Minimum Torque | 1300 Nm |
| Max terrain distance: | |
| – Decks: | Maks. 25 cm |
| – Building: | Maks. 7 cm |
| Techincal Drawing: | |
To find out, how many and which type of GroundPlug® Screw Pile, you need for your project, you have 3 options:
Use our free engineering service by filling out our project form.
Calculate you own project by using our capacity tables
Please note that the tables can only be applied to smaller simpler projects such as decks, sheds and outbuildings with standard shapes. If you are building a larger or more complex project, with a more complex shape or on sloping terrain we encourage you to take advantage of our free engineering service.
You can also design and calculate your own deck project using our super cool 3D Deck Designer.
GroundPlug® Twister™ Screw piles are designed for quick and easy installation , regardless of what size you are installing. On our installation page you will find step-by-step installation manuals, incl. a list af the tools you will need to install the GroundPlug® Twister™ Screw Piles. It doesn’t get much simpler than that.
