£ 59,99 incl. vat

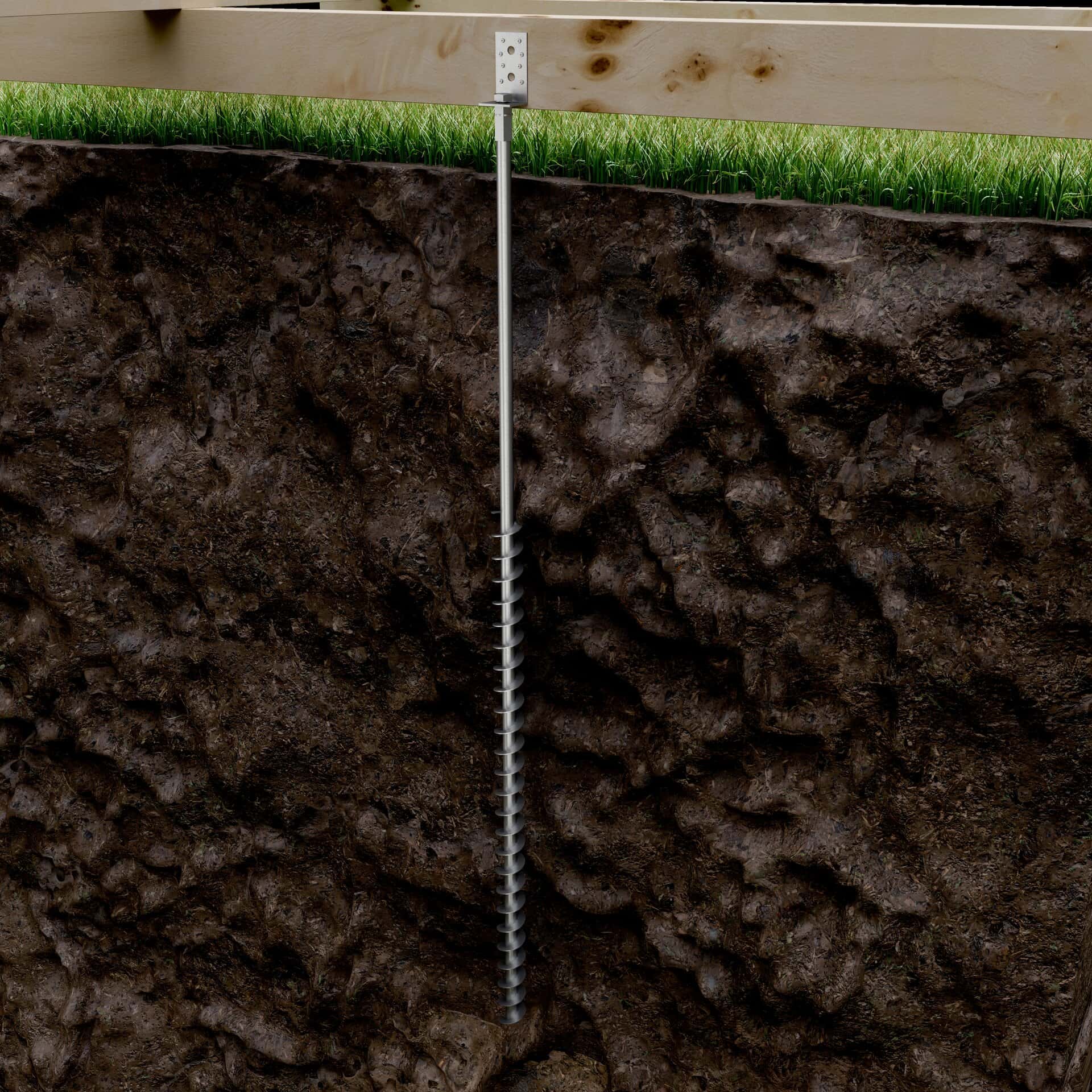

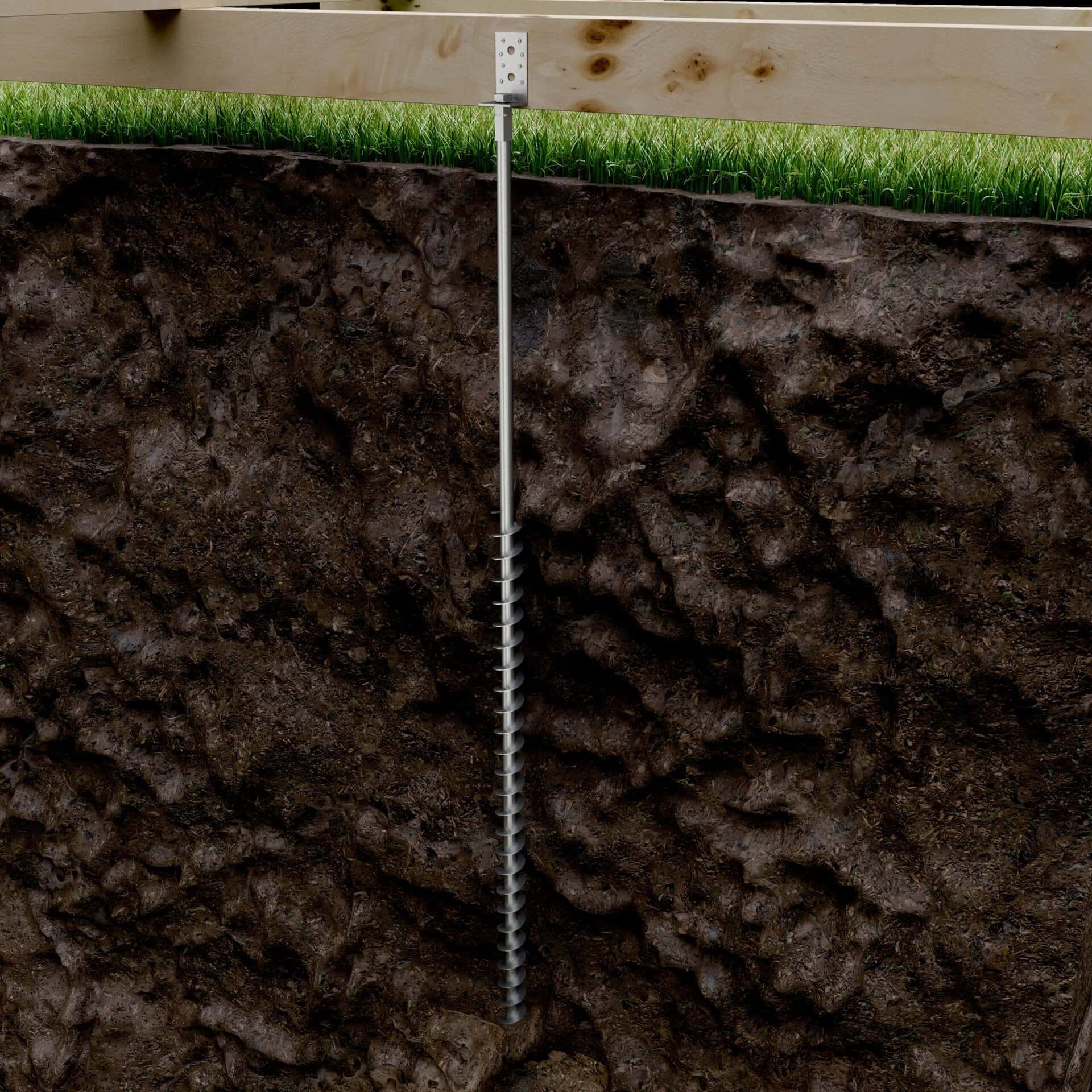

GroundPlug® TwisterTM M16 is our second largest TwisterTM screw pile series (for the private market). We recommend this series for all soil types and sloped terrain. The GroundPlug® TwisterTM M16/1500mm is the right choice for larger wooden constructions such as cabins, annexes or garages when if you need to reach deep to get into bearing soil layer. Distance from terrain level to mounting point up to 50cm for flat constructions like decks and walkways and 20cm for upright construction such as shed, annexes etc.
Choose this screw pile footing for projects like heavier/bigger shed, granny flats, cabins, decks or walkways with more than 35cm terrain distance, or for sloped terrain in general. If you need to reach even deeper, the M16/1500mm can be extended an extra +30cm or +50 cm with our GroundPlug® TwisterTM M16 Extenders.
GroundPlug® TwisterTM M16 is our second largest TwisterTM footing (for the private market). We recommend this series for all soil types and extra sloped terrain.
Choose this footing for flat to sloped terrain for projects like large pergolas, post constructions and carports, granny flats, cabins, raised decks, walkways or any other building project on extra sloped terrain.
£ 59,99 incl. vat
| Weight: | 3.52 kg | |
|---|---|---|
| Dimensions: | 150 cm X 4.93 cm X 4.93 cm | |
| Materials: | Galvanized steel | |
| Vertical Load Capacities at max terrain distance: | ||
| – Soft Clay/Loose sand: | Compression: 4.62 kN | Tension: 4.62 kN |
| – Medium clay/Medium sand: | Compression: 6.78 kN | Tension: 6.66 kN |
| – Stiff clay/Dense sand: | Compression: 11.34 kN | Tension: 11.06 kN |
| Vertical Load capacities when fully installed in ground: | ||
| – Soft clay/Loose sand: | Compression: 8,62 kN | Tension: 8,61 kN |
| – Medium clay/Medium sand: | Compression: 12,65 kN | Tension: 12,43 kN |
| – Stiff clay/Dense sand: | Compression: 21,14 kN | Tension: 20,64 kN |
| Top for impact wrench: | 24 mm | |
| Minimum torque: | 1500 Nm | |
| Max terrain distance: | ||
| – Decks: | Maks. 50 cm | |
| – Buildings: | Maks. 20 cm | |
| Max terrain distance when applying post bracket or stabiliser: | ||
| – Decks: | Maks. 20 cm | |
| – Buildings: | Maks. 20 cm | |

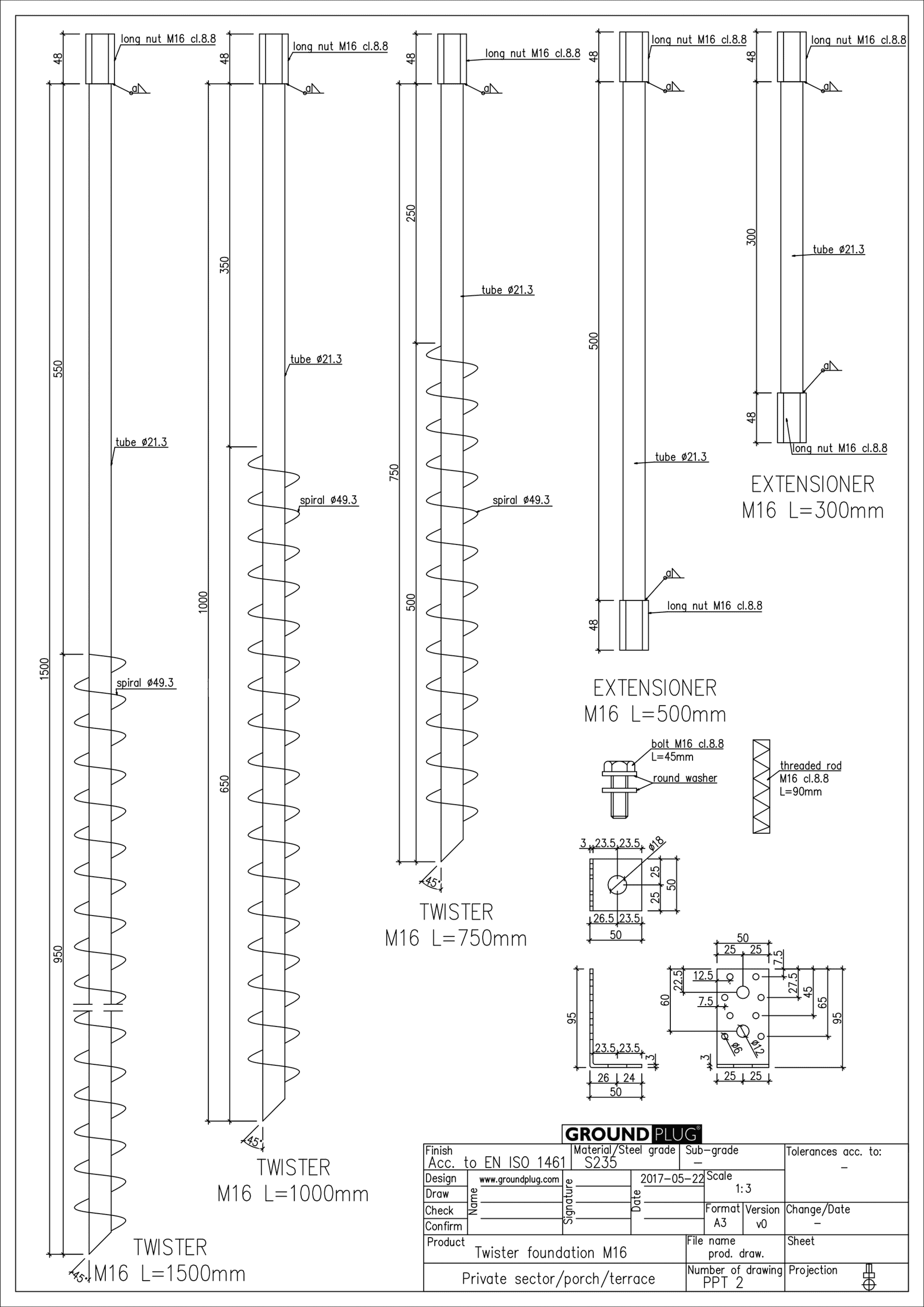

| Technical drawing: | ||
| Weight: | 3.52 kg |
|---|---|
| Dimensions: | 150 cm X 4.93 cm X 4.93 cm |
| Materials: | Galvanized steel |
| Vertical Load Capacities at max terrain distance: | |
| – Soft Clay/Loose sand: | |
| Compression: 4.62 kN | Tension: 4.62 |
| – Medium clay/Medium sand: | |
| Compression: 6.78 kN | Tension: 6.66 kN |
| – Stiff clay/Dense sand: | |
| Compression: 11.34 kN | Tension: 11.06 kN |
| Vertical Load capacities when fully installed in ground: | |
| – Soft Clay/Loose sand: | |
| Compression: 8,62 kN | Tension: 8,61 |
| – Medium clay/Medium sand: | |
| Compression: 12,65 kN | Tension: 12,43 kN |
| – Stiff clay/Dense sand: | |
| Compression: 21,14 kN | Tension: 20,64 kN |
| Top for impact wrench: | 24 mm |
| Minimum Torque | 1500 Nm |
| Max terrain distance: | |
| – Decks: | Maks. 50 cm |
| – Building: | Maks. 20 cm |
| Techincal Drawing: | |
To find out, how many and which type of GroundPlug® Screw Pile, you need for your project, you have 3 options:
Use our free engineering service by filling out our project form.
Calculate you own project by using our capacity tables
Please note that the tables can only be applied to smaller simpler projects such as decks, sheds and outbuildings with standard shapes. If you are building a larger or more complex project, with a more complex shape or on sloping terrain we encourage you to take advantage of our free engineering service.
You can also design and calculate your own deck project using our super cool 3D Deck Designer.
GroundPlug® Twister™ Screw piles are designed for quick and easy installation , regardless of what size you are installing. On our installation page you will find step-by-step installation manuals, incl. a list af the tools you will need to install the GroundPlug® Twister™ Screw Piles. It doesn’t get much simpler than that.
Installation manual:
